Telephone Plant Records

An Orderly Approach to mapping for small telcos.


               Chapter 6 -
                  Here are some tips for making sure maps are up-to-date,
                  convenient to store and easy to use.

--------

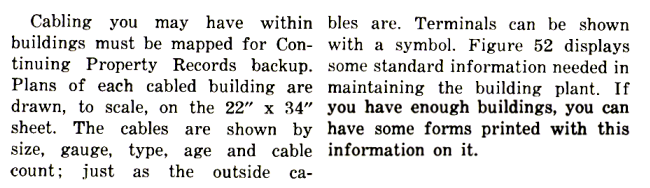

                 Buildings

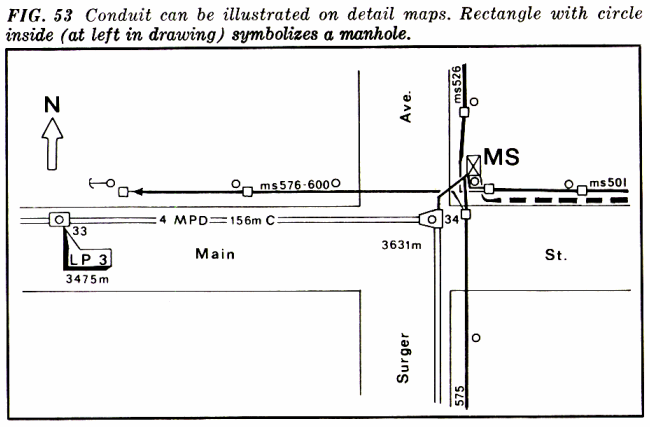

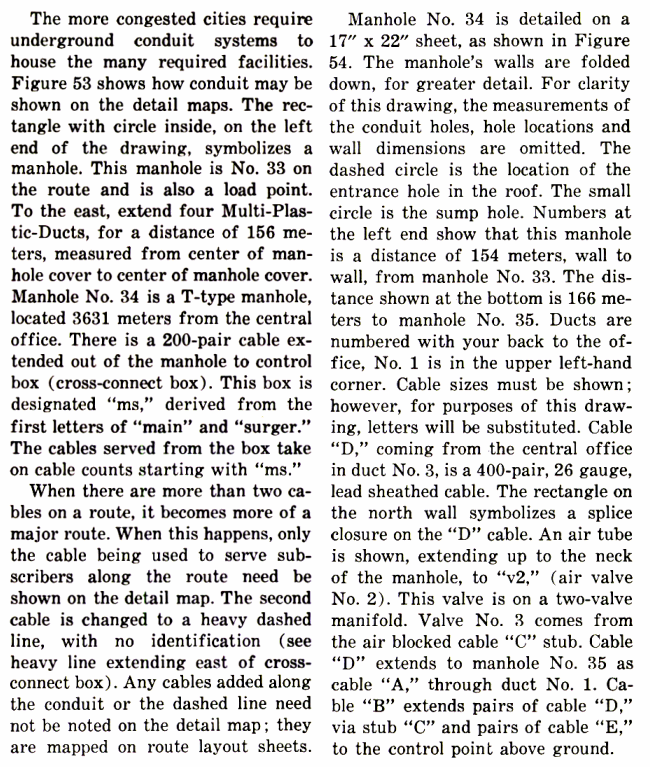

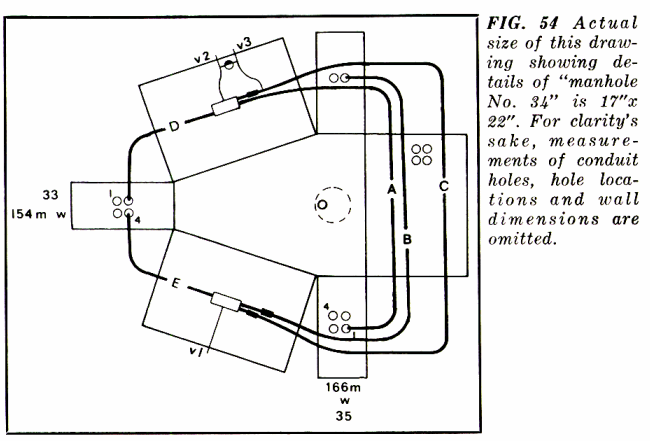

                 Underground Conduit

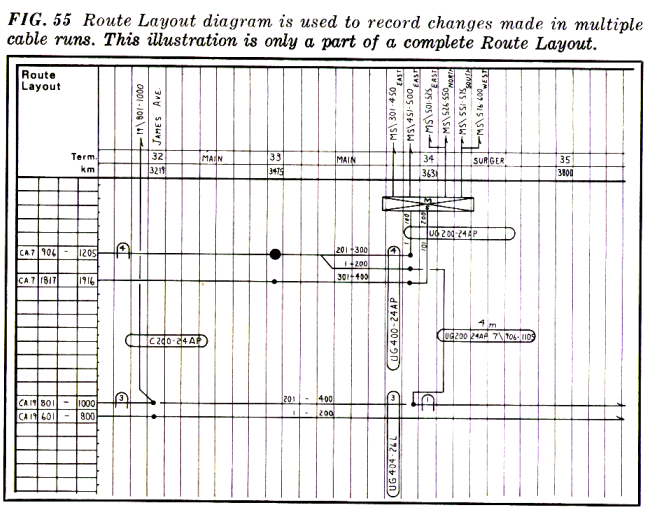

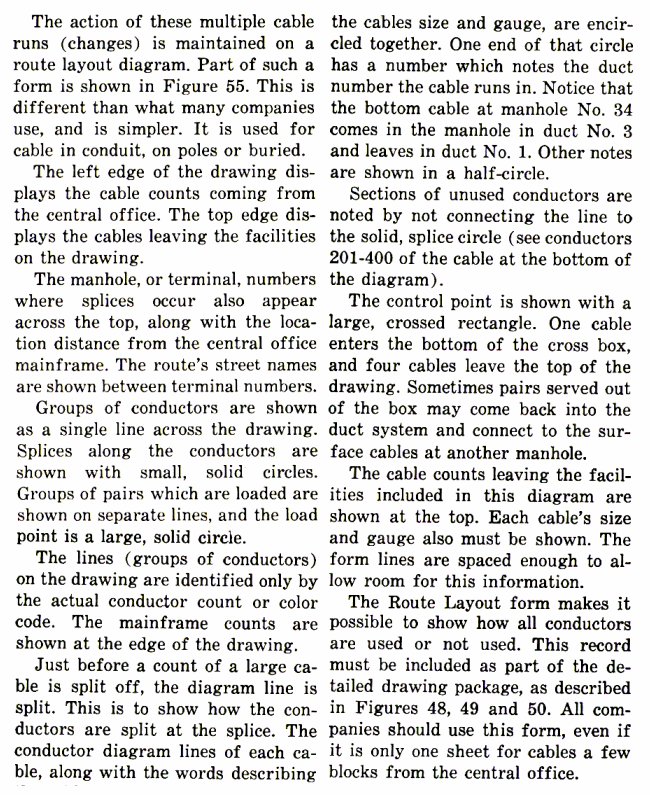

                  Route Layout


Go To Book Index
