Messenger Strand Splicing
Devices
.
| Whiteford Telephone Company used both

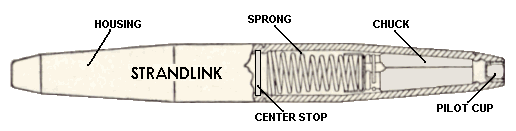

of these type devices. Vern did not get into this type work. The Strandlink
was quicker to use and the Preformed provided a smoother splice. The messenger
strand supported telephone cable. The same strand is utilized as guys to
keep poles in line. |
.

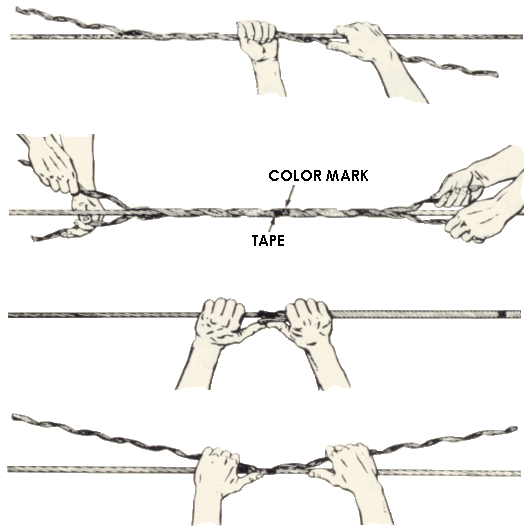

Procedure for assembling Preformed Splice
subsets on strand ends to splice them together.
-
Top.......Applying
first subset with strand ends butted together.
-
2nd ......Two
subsets partially applied.
-
Last......Snapping
in the last pitch of a subset.
-
Other....Applying
the first subset of a Preformed Splice for repairing damaged strand.
|
... |
