Agren Creek Washout
In 1990 in the area of Vader, Washinmgton; there was a huge rain fall.  Agren Creek
has a pond built within it where in the dam for the pond broke and sent enough water
down stream to plug a culvert and wash out the tracks of the Burlinton Northern R.R.

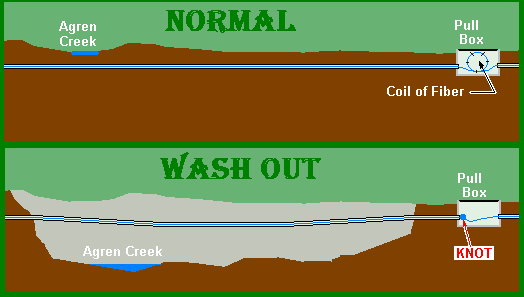

On the R.R.right-of-way, along the west side of the track is the conduit system
for AT&T's fiber cable system which we installed a couple years before.  Miraculously
the cable within was strong enough to support the conduit and it remained,
swinging in the air. The cable did go out of service however because a kink was
formed so sharp that the light could not pass.    See NEWS Clipping

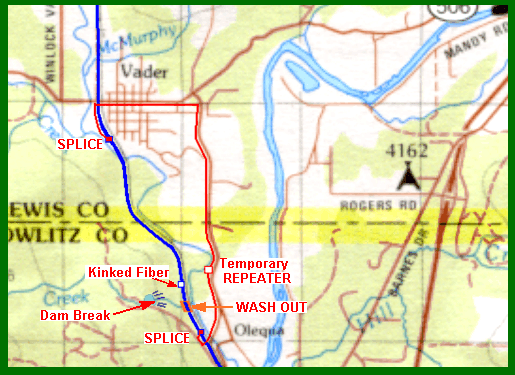

Before the cable and conduit could be replaced, a temporary fiber was placed around
the damage area via the streets of Vader and the county roads. A repeater had to be
placed in line also because of the added distance. The repairs took several weeks.
Vern was the engineer for the conduit replacment.  See photo links below.

Click on Thumbnail prints below to see related photos
CONSTRUCTION PLANS
BACKFILL OF ROAD BED
VIEW OF COILED FIBER
VIEW OF KINKED FIBER
